ARCHON+ House plan - House in the cyclamens 2
252



260
Energooszczednosc Pakiet-komfort Piekny-ogrod Instalacja-odgromowa Rodzina-na-swoim
semi-detached house

4 rooms, 1 kitchen, 1 bathrooms, dining room, WC, boiler-room, wardrobes, fireplace,
TECHNICAL SPECIFICATIONS
House area
without boiler-room
86,71 m2
boiler-room 3,15 m2

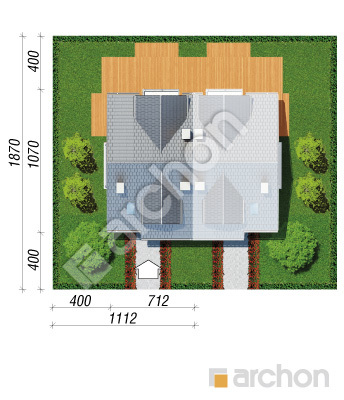

minimal lot dimensions [i] 11,12x18,70 m
* after changes [i] 10,67x18,20 m
Cubature 449,18 m3
Building area 68,89 m2
Usable area [i] 83,51 m2
Building height 8,07 m
TECHNOLOGY AND CONSTRUCTION:
exterior walls: lime-sand brick SILKA 24 cm, foamed polystyrene 20 cm, plaster
strop: reinforced concrete slab
up stand wall: 121 cm
roof: double-pitched , roof angle 35° , and 42° , roof construction: wooden, ceramic roofing tile

price: 3,720.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>
