ARCHON+ House plan - House in the oregano
252



260
Energooszczednosc Pakiet-komfort Piekny-ogrod Instalacja-odgromowa
single-family house

garage, attic, 5 rooms, 1 kitchen, 2 bathrooms, pantry, WC, boiler-room, laundry, wardrobes, fireplace,
TECHNICAL SPECIFICATIONS
House area
without boiler-room, garage, attic
167,21 m2
boiler-room 6,77 m2
Garage area 41,60 m2
Attic area 31,97 m2

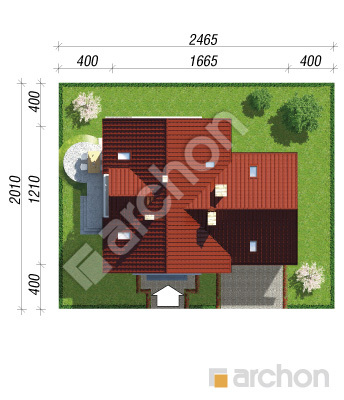

minimal lot dimensions [i] 24,65x20,10 m
* after changes [i] 22,60x20,10 m
Cubature 1 202,40 m3
Building area 175,42 m2
Usable area [i] 149,61 m2
Building height 8,98 m
TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 20 cm, plaster
strop: reinforced concrete slab
up stand wall: 116 cm
roof: double-pitched , roof angle 40° , roof construction: wooden, ceramic roofing tile

price: 5,130.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>
House in the oregano
ground floor 133,61 (136,40)
1. 4,29
2. 11,19
3. 10,33
4. 1,47
5. 32,58
6. 13,19
7. 4,62 (5,38)
8. 2,62
9. 4,95
10. 41,60 (43,63)
11. 6,77
House in the oregano
attic 113,94 (133,94)
1. 5,26 (5,26)
2. 4,26 (4,26)
3. 2,09 (3,29)
4. 4,83 (6,42)
5. 4,26 (5,75)
6. 16,86 (19,64)
7. 7,62 (7,62)
8. 13,76 (13,76)
9. 15,43 (18,20)
10. 7,60 (10,05)
11. 17,41 (21,93)
12. 14,56 (17,76)
