ARCHON+ House plan - House in the clover 3
252



260
Energooszczednosc Pakiet-komfort Piekny-ogrod Instalacja-odgromowa Rodzina-na-swoim
single-family house

garage, 4 rooms, 1 kitchen, 1 bathrooms, pantry, WC, boiler-room, wardrobes, fireplace,
TECHNICAL SPECIFICATIONS
House area
without boiler-room, garage
113,64 m2
boiler-room 6,17 m2
Garage area 18,66 m2

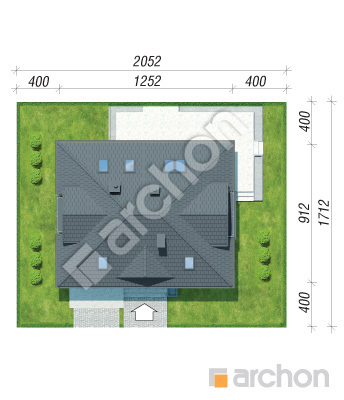

minimal lot dimensions [i] 20,52x17,12 m
* after changes [i] 19,52x17,12 m
Cubature 698,21 m3
Building area 109,00 m2
Usable area [i] 108,59 m2
Building height 8,87 m
TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 20 cm, plaster
strop: reinforced concrete slab
up stand wall: 110 cm
roof: hipped, roof angle 42° , roof construction: wooden, ceramic roofing tile

price: 4,170.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>
House in the clover 3
ground floor 81,48 (85,07)
1. 4,68
2. 4,58
3. 1,87 (5,46)
4. 6,03
5. 29,07
6. 8,82
7. 1,60
8. 18,66
9. 6,17
House in the clover 3
attic 56,99 (75,24)
1. 5,35
2. 14,18 (19,10)
3. 12,48 (16,59)
4. 6,80 (8,27)
5. 14,73 (19,08)
6. 3,45 (6,85)
