archonplus.com House in the myrtle 3

ARCHON+ House plan - House in the myrtle 3

semi-detached house

garage, 5 rooms, 1 kitchen, 1 bathrooms, pantry, WC, boiler-room, fireplace,

TECHNICAL SPECIFICATIONS

House area without boiler-room, garage	119,47 m²
boiler-room	6,08 m²
Garage area	18,17 m²

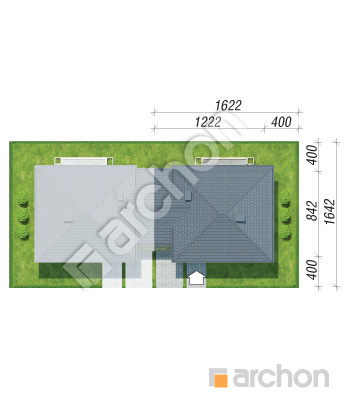

minimal lot dimensions [i] the terraces are not included	16,22x16,42 m
* after changes [i] the specification of suggested changes available on request	15,22x16,42 m
Cubature	754,61 m³
Building area	98,03 m²
Usable area [i] house area without utility rooms, garage, attic and basement	118,16 m²

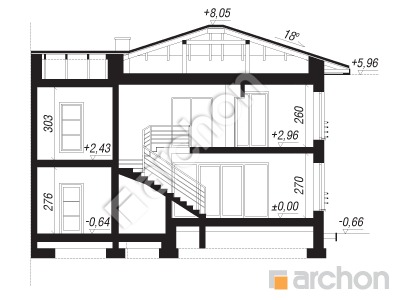

Building height	8,71 m

TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 20 cm, plaster
strop: reinforced concrete slab
roof: hipped, roof angle 18° , roof construction: wooden, ceramic roofing tile

price: 3,970.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>

send order inquiry

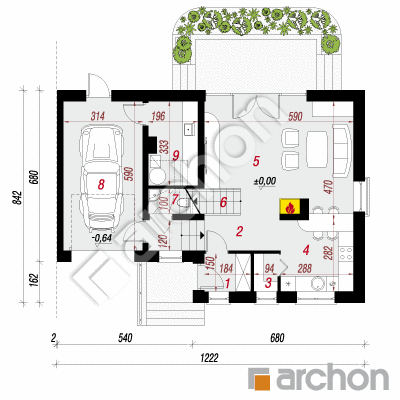

ground floor	72,75	(74,40)
1.	2,63
2.	6,84
3.	1,31
4.	8,38
5.	24,28	(25,39)
6.	3,76
7.	1,30	(1,84)
8.	18,17
9.	6,08

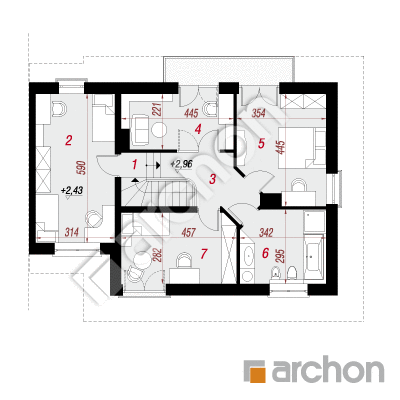

floor	70,97
1.	1,51
2.	18,17
3.	6,02
4.	9,30
5.	13,99
6.	9,52
7.	12,46
