ARCHON+ House plan - House in the honeysuckle (G2(
252


260
Energooszczednosc Pakiet-komfort Piekny-ogrod Instalacja-odgromowa
single-family house

garage, 5 rooms, 1 kitchen, 2 bathrooms, pantry, boiler-room, wardrobes, utility room, fireplace,
TECHNICAL SPECIFICATIONS
House area
without boiler-room, garage
163,68 m2
boiler-room 9,58 m2
Garage area 42,05 m2

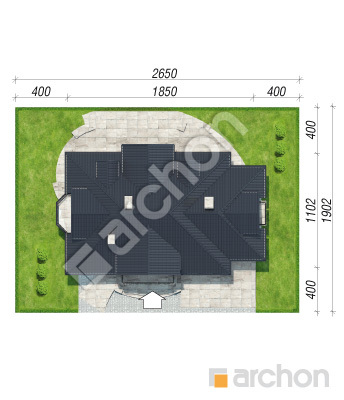

minimal lot dimensions [i] 26,50x19,02 m
* after changes [i] 24,70x19,02 m
Cubature 1 055,95 m3
Building area 163,69 m2
Usable area [i] 141,89 m2

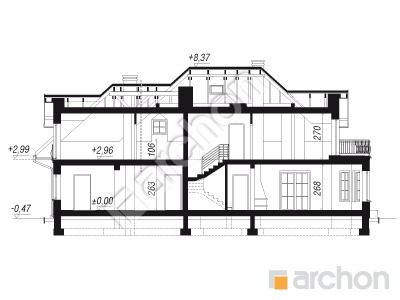

Building height 8,84 m
TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 20 cm, plaster
strop: reinforced concrete slab
up stand wall: 106 cm
roof: hipped, roof angle 42° , roof construction: wooden, ceramic roofing tile

price: 4,460.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>
House in the honeysuckle (G2(
ground floor 120,19 (122,72)
1. 6,38
2. 3,85
3. 1,47
4. 11,53
5. 29,40
6. 12,07 (13,88)
7. 3,86 (4,58)
8. 42,05
9. 9,58
House in the honeysuckle (G2(
attic 95,12 (118,03)
1. 4,18 (4,18)
2. 10,16 (10,16)
3. 11,03 (11,59)
4. 20,93 (25,43)
5. 2,85 (6,05)
6. 14,90 (15,82)
7. 5,90 (10,12)
8. 1,93 (4,84)
9. 13,60 (17,87)
10. 9,64 (11,97)
