ARCHON+ House plan - House in the clematises 7 (S)
252



260
Energooszczednosc Pakiet-komfort Piekny-ogrod Instalacja-odgromowa Rodzina-na-swoim
house for ribbon development

garage, 5 rooms, 1 kitchen, 2 bathrooms, boiler-room, wardrobes, fireplace,
TECHNICAL SPECIFICATIONS
House area
without boiler-room, garage		122,75 m2
boiler-room 5,80 m2
Garage area 18,07 m2

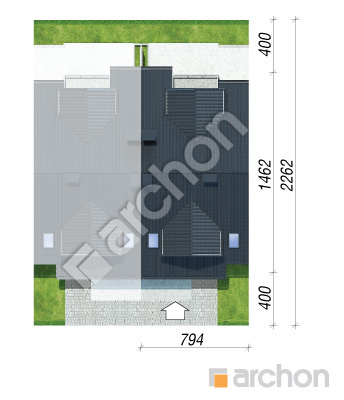

minimal lot dimensions [i] 7,94x22,62 m
Cubature 713,27 m3
Building area 106,68 m2
Usable area [i] 118,89 m2

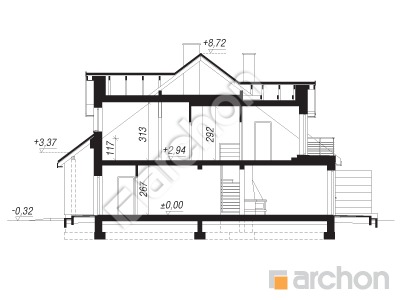

Building height 9,04 m
TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 20 cm, plaster
strop: reinforced concrete slab
roof: double-pitched , roof angle 37° , roof construction: wooden, ceramic roofing tile

price: 3,970.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>
send order inquiry

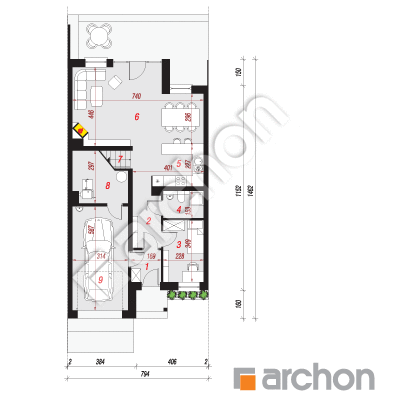

House in the clematises 7 (S)
ground floor 85,53 (88,56)
1. 2,90
2. 5,13
3. 7,73
4. 3,34
5. 9,05
6. 28,82
7. 4,69
8. 5,80 (8,83)
9. 18,07

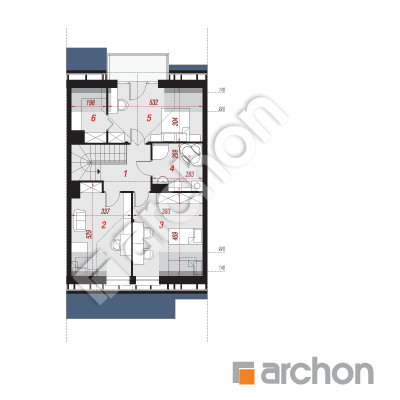

House in the clematises 7 (S)
attic 61,09 (68,02)
1. 5,50
2. 14,45 (16,04)
3. 16,12 (18,07)
4. 7,01
5. 14,15 (15,98)
6. 3,86 (5,42)
256
255
