ARCHON+ House plan - House in the akebia 2
TECHNICAL SPECIFICATIONS
House area without boiler-room, garage 137,22 m2
boiler-room 6,20 m2
Garage area 39,98 m2
minimal lot dimensions [i]
the terraces are not included
27,42x23,62 m
* after changes [i]
the specification of suggested changes available on request
25,42x23,62 m
Cubature 1 097,54 m3
Building area 232,54 m2
Usable area
[i]
house area without utility rooms, garage, attic and basement
128,16 m2
Building height 6,93 m
TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 20 cm, plaster strop: reinforced concrete slab roof: hipped, roof angle 30° , roof construction: wooden, ceramic roofing tile
price: 4,370.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>

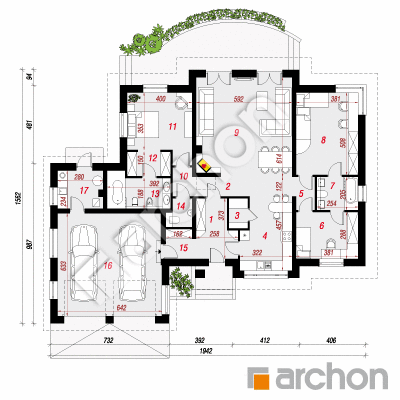

ground floor
183,40
1.
8,04
2.
6,87
3.
2,03
4.
13,24
5.
2,54
6.
10,71
7.
5,02
8.
19,00
9.
35,46
10.
2,34
11.
14,93
12.
3,86
13.
7,63
14.
2,38
15.
3,17
16.
39,98
17.
6,20
