ARCHON+ House plan - House in the zephyranthes (G2)
252


260
Energooszczednosc Pakiet-komfort Piekny-ogrod Instalacja-odgromowa
single-family house

garage, attic, 6 rooms, 1 kitchen, 2 bathrooms, boiler-room, laundry, fireplace,
TECHNICAL SPECIFICATIONS
House area
without boiler-room, garage
173,23 m2
boiler-room 7,18 m2
Garage area 38,99 m2
Attic area 0,88 m2

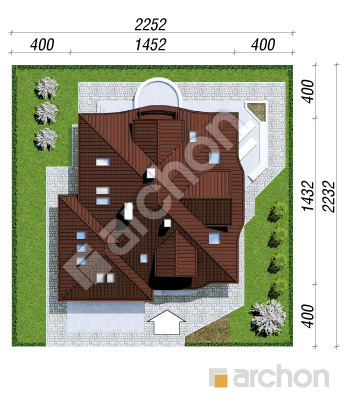

minimal lot dimensions [i] 22,52x22,32 m
* after changes [i] 20,62x22,32 m
Cubature 1 031,50 m3
Building area 170,83 m2
Usable area [i] 167,79 m2
Building height 9,02 m
TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 20 cm, plaster
strop: reinforced concrete slab
up stand wall: 90 cm
roof: hipped, roof angle 38° , roof construction: wooden, ceramic roofing tile

price: 4,660.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>
House in the zephyranthes (G2)
ground floor 135,43 (137,94)
1. 5,90 (6,16)
2. 2,89 (5,14)
3. 12,29
4. 42,93
5. 2,22
6. 15,44
7. 7,18
8. 3,02
9. 38,99
10. 4,57
House in the zephyranthes (G2)
attic 84,85 (129,48)
1. 11,72 (12,69)
2. 19,63 (25,91)
3. 13,57 (20,65)
4. 17,29 (24,67)
5. 6,99 (10,77)
6. 5,44 (5,93)
7. 9,33 (23,25)
8. 0,88 (5,61)
