archonplus.com House in the arnica

ARCHON+ House plan - House in the arnica

single-family house

3 rooms, 1 kitchen, 1 bathrooms, boiler-room, fireplace,

TECHNICAL SPECIFICATIONS

House area without boiler-room	77,98 m²
boiler-room	4,91 m²

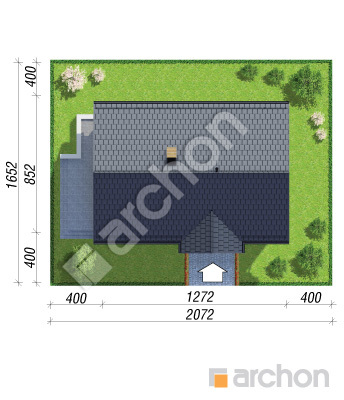

minimal lot dimensions [i] the terraces are not included	20,72x16,52 m
* after changes [i] the specification of suggested changes available on request	20,72x15,52 m
Cubature	565,23 m³
Building area	109,22 m²
Usable area [i] house area without utility rooms, garage, attic and basement	77,98 m²
Building height	6,70 m

TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 20 cm, plaster
strop: reinforced concrete slab

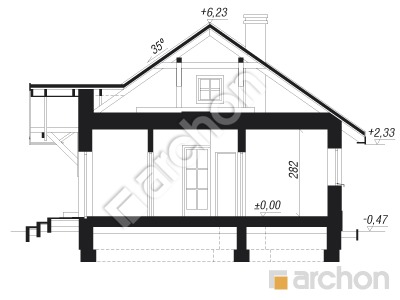

roof: double-pitched , roof angle 35° , roof construction: wooden, ceramic roofing tile

price: 3,210.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>

send order inquiry

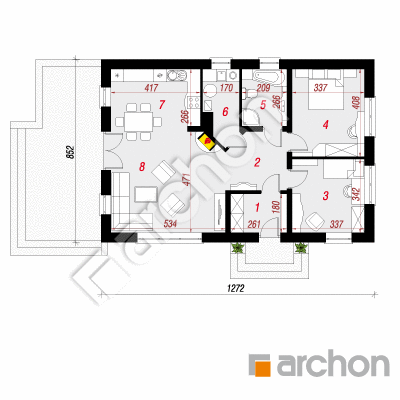

ground floor	82,89
1.	4,52
2.	7,23
3.	11,26
4.	13,45
5.	5,37
6.	4,91
7.	10,82
8.	25,33
