ARCHON+ House plan - House in the dahlias 2
252


260
Energooszczednosc Pakiet-komfort Piekny-ogrod Instalacja-odgromowa Rodzina-na-swoim
single-family house

garage, 6 rooms, 1 kitchen, 2 bathrooms, boiler-room, fireplace,
TECHNICAL SPECIFICATIONS
House area
without boiler-room, garage
124,42 m2
boiler-room 4,28 m2
Garage area 20,70 m2

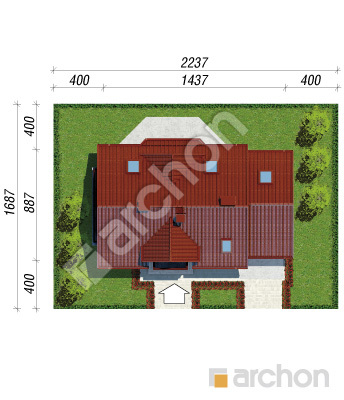

minimal lot dimensions [i] 22,37x16,87 m
* after changes [i] 21,37x16,07 m
Cubature 705,72 m3
Building area 115,67 m2
Usable area [i] 124,42 m2
Building height 8,12 m
TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 20 cm, plaster
strop: rib and slab floor Teriva
up stand wall: 96 cm
roof: double-pitched , roof angle 42° , roof construction: wooden, ceramic roofing tile

price: 3,430.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>
House in the dahlias 2

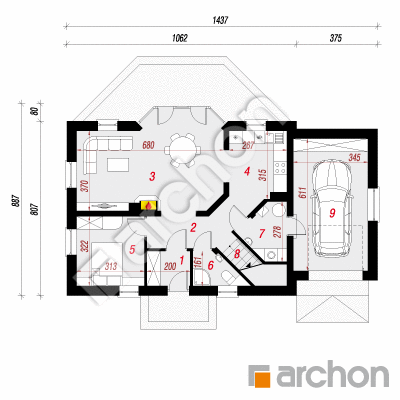

ground floor 88,53 (88,71)
1. 3,00
2. 6,87
3. 27,58
4. 8,48
5. 9,83
6. 2,89
7. 4,28 (4,46)
8. 4,90
9. 20,70
House in the dahlias 2

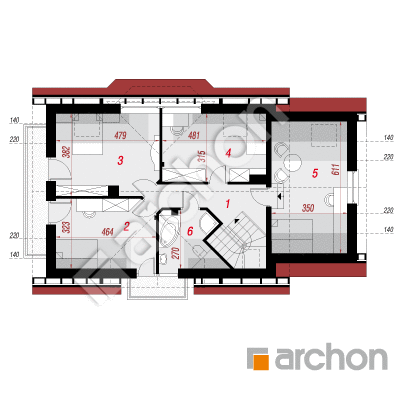

attic 60,87 (81,09)
1. 7,12 (7,12)
2. 11,40 (14,40)
3. 14,13 (17,40)
4. 11,31 (14,59)
5. 11,59 (21,00)
6. 5,32 (6,58)
