ARCHON+ House plan - House under the sago palms 2 (B)
252


260
Energooszczednosc Pakiet-komfort Piekny-ogrod Instalacja-odgromowa


garage, basement, 8 rooms, 2 kitchens, 3 bathrooms,
TECHNICAL SPECIFICATIONS
House area
without basement		183,18 m2
Basement area 66,77 m2

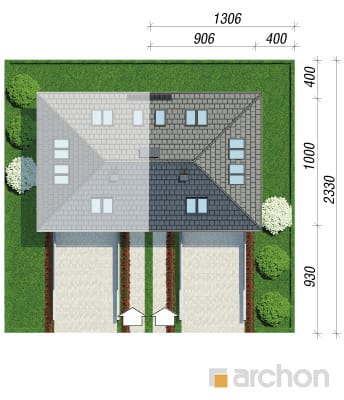

minimal lot dimensions [i] 13,06x18,00 m
Cubature 1 020,63 m3
Building area 90,88 m2
Usable area [i] 183,18 m2

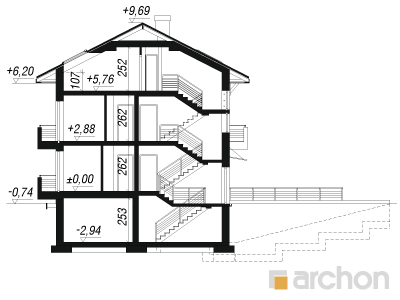

Building height 10,43 m
TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 20 cm, plaster
strop: reinforced concrete slab
up stand wall: 107 cm
roof: hipped, roof angle 27° , roof construction: wooden, ceramic roofing tile

price: 6,100.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>
send order inquiry

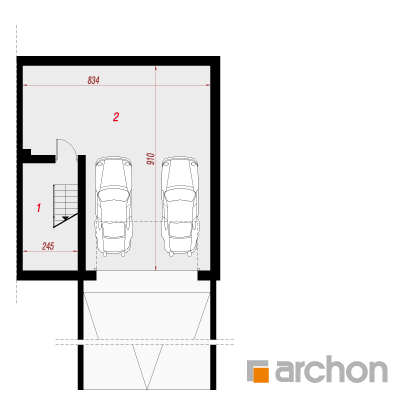

House under the sago palms 2 (B)
basement 66,77 (72,15)
1. 6,04 (11,42)
2. 60,73 (60,73)

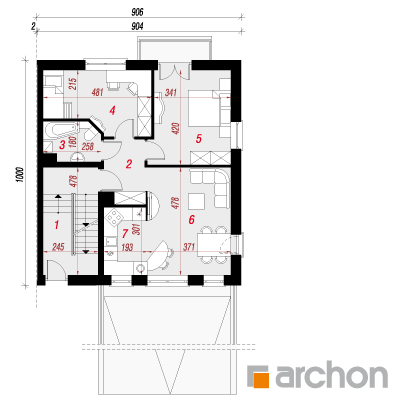

House under the sago palms 2 (B)
ground floor 69,84
1. 11,42
2. 4,91
3. 4,08
4. 11,94
5. 14,35
6. 17,52
7. 5,62

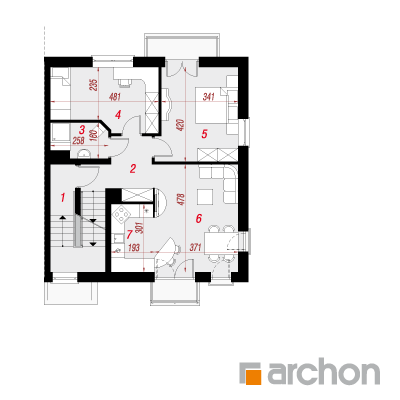

House under the sago palms 2 (B)
floor 68,54
1. 9,12
2. 6,54
3. 3,57
4. 12,37
5. 13,87
6. 17,40
7. 5,67
House under the sago palms 2 (B)
attic 44,80 (71,59)
1. 7,14 (7,14)
2. 6,31 (6,31)
3. 6,22 (9,71)
4. 12,56 (24,00)
5. 12,57 (24,43)
