ARCHON+ House plan - House in the hebe 2
252



260
Energooszczednosc Pakiet-komfort Piekny-ogrod Instalacja-odgromowa
single-family house

garage, 6 rooms, 1 kitchen, 2 bathrooms, pantry, WC, boiler-room, laundry, wardrobes, fireplace,
TECHNICAL SPECIFICATIONS
House area
without boiler-room, garage
192,64 m2
boiler-room 5,85 m2
Garage area 37,90 m2

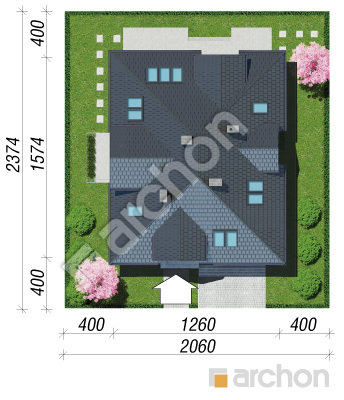

minimal lot dimensions [i] 20,60x23,74 m
* after changes [i] 20,10x23,10 m
Cubature 1 139,40 m3
Building area 187,94 m2
Usable area [i] 176,85 m2
Building height 8,52 m
TECHNOLOGY AND CONSTRUCTION:
exterior walls: lime-sand brick SILKA 24 cm, foamed polystyrene 20 cm, plaster
strop: reinforced concrete slab
up stand wall: 70 cm
roof: hipped, roof angle 35° , roof construction: wooden, ceramic roofing tile

price: 5,130.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>
House in the hebe 2
ground floor 135,09 (138,91)
1. 5,78
2. 1,77
3. 13,01
4. 5,78
5. 34,86
6. 17,72
7. 3,28
8. 3,01
9. 5,85 (9,67)
10. 1,77
11. 4,36
12. 37,90
House in the hebe 2
attic 101,30 (151,85)
1. 6,73 (6,73)
2. 10,57 (10,57)
3. 8,20 (13,05)
4. 5,60 (14,81)
5. 17,12 (26,87)
6. 5,14 (7,59)
7. 17,28 (17,28)
8. 13,90 (27,23)
9. 16,76 (27,72)
