ARCHON+ House plan - House in the asparagus (PN)
252



260
Energooszczednosc Pakiet-komfort Piekny-ogrod Instalacja-odgromowa Rodzina-na-swoim
single-family house

garage, basement, 5 rooms, 1 kitchen, 2 bathrooms, pantry, dining room, boiler-room, laundry, wardrobes, utility room, fireplace,
TECHNICAL SPECIFICATIONS
House area
without garage, basement
137,25 m2
Garage area 17,10 m2
Basement area 84,82 m2
minimal lot dimensions [i] 19,12x19,62 m
* after changes [i] 18,12x19,62 m
Cubature 1 096,43 m3
Building area 116,10 m2
Usable area [i] 133,61 m2
Building height 8,54 m
TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 20 cm, plaster
strop: reinforced concrete slab
up stand wall: 99 cm
roof: double-pitched , roof angle 40° , roof construction: wooden, ceramic roofing tile

price: 4,820.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>

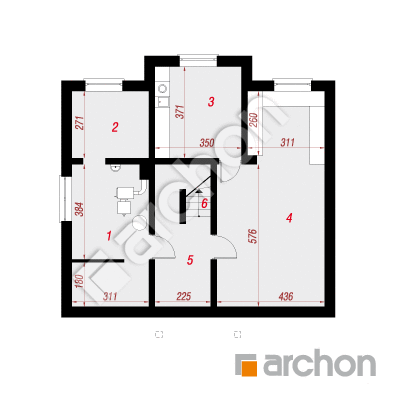

House in the asparagus (PN)
basement 84,82 (87,99)
1. 16,99
2. 8,20
3. 12,70
4. 33,65
5. 8,56 (11,73)
6. 4,72

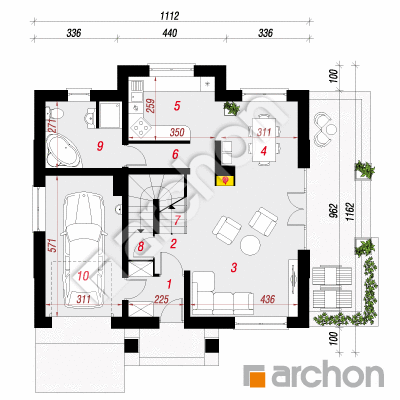

House in the asparagus (PN)
ground floor 84,65
1. 4,12
2. 2,04
3. 26,30
4. 8,30
5. 8,98
6. 3,60
7. 5,16
8. 1,03
9. 8,02
10. 17,10

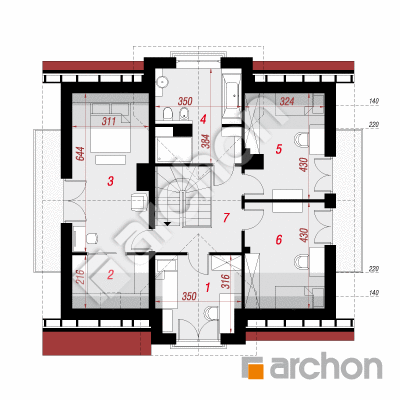

House in the asparagus (PN)
attic 69,70 (82,07)
1. 9,69 (10,22)
2. 3,64 (6,51)
3. 16,41 (19,32)
4. 12,46 (12,46)
5. 10,04 (13,07)
6. 10,53 (13,56)
7. 6,93 (6,93)
