ARCHON+ House plan - House in the cranberry 2

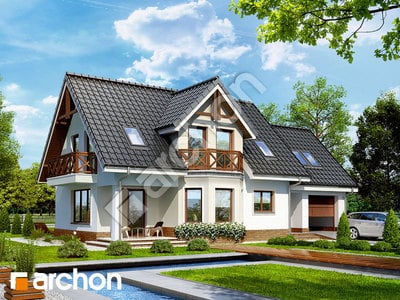

252

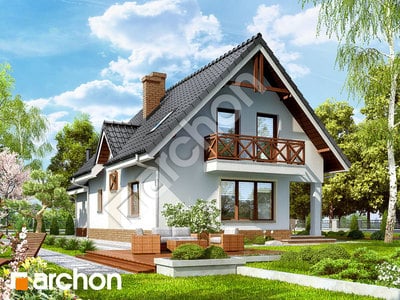

260
Energooszczednosc Pakiet-komfort Piekny-ogrod Instalacja-odgromowa Rodzina-na-swoim
single-family house

garage, 5 rooms, 1 kitchen, 2 bathrooms, dining room, boiler-room, utility room, fireplace,
TECHNICAL SPECIFICATIONS
House area
without boiler-room, garage
122,15 m2
boiler-room 3,59 m2
Garage area 18,06 m2
minimal lot dimensions [i] 23,42x16,89 m
* after changes [i] 22,42x14,90 m
Cubature 732,52 m3
Building area 119,91 m2
Usable area [i] 119,76 m2
Building height 8,24 m
TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 20 cm, plaster
strop: reinforced concrete slab
up stand wall: 90 cm
roof: double-pitched , roof angle 45° , roof construction: wooden, ceramic roofing tile

price: 4,170.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>
House in the cranberry 2
ground floor 84,27 (85,25)
1. 5,06
2. 3,76
3. 8,62
4. 7,87
5. 27,74 (28,72)
6. 3,59
7. 3,26
8. 3,92
9. 2,39
10. 18,06
House in the cranberry 2
attic 59,53 (83,77)
1. 7,41 (7,41)
2. 5,31 (8,04)
3. 10,47 (13,24)
4. 11,32 (14,03)
5. 10,06 (13,41)
6. 14,96 (27,64)

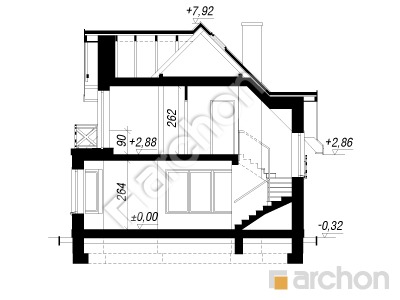

256

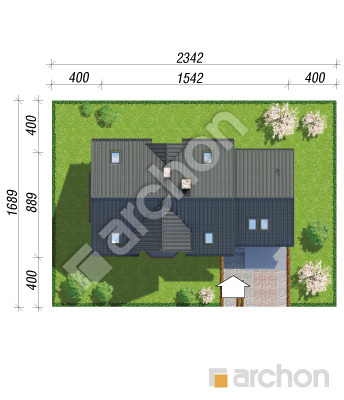

255
