ARCHON+ House plan - House in the calathea 3
single-family house
garage, attic, 5 rooms, 1 kitchen, 2 bathrooms, pantry, dining room, boiler-room, laundry, wardrobes, utility room, fireplace,
TECHNICAL SPECIFICATIONS
|
House area without garage, attic | 192,30 m2 |
| Garage area | 36,50 m2 |
| Attic area | 5,30 m2 |

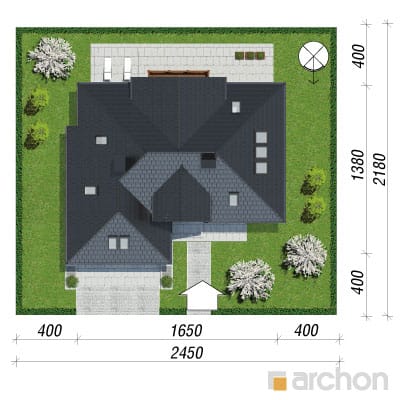

| minimal lot dimensions [i] | 24,50x21,80 m |
| * after changes [i] | 22,90x21,80 m |
| Cubature | 1 073,00 m3 |
| Building area | 177,70 m2 |
| Usable area [i] | 162,10 m2 |
| Building height | 8,26 m |
TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 14 cm, plaster
strop: reinforced concrete slab
up stand wall: 107 cm
roof: hipped, roof angle 38° , roof construction: wooden, ceramic roofing tile
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 14 cm, plaster
strop: reinforced concrete slab
up stand wall: 107 cm
roof: hipped, roof angle 38° , roof construction: wooden, ceramic roofing tile
price: 2,560.00 zł
