ARCHON+ House plan - House in the tamarillo (T)

semi-detached house

5 rooms, 1 kitchen, 2 bathrooms, WC, utility room, fireplace,

TECHNICAL SPECIFICATIONS

House area	131,40 m²

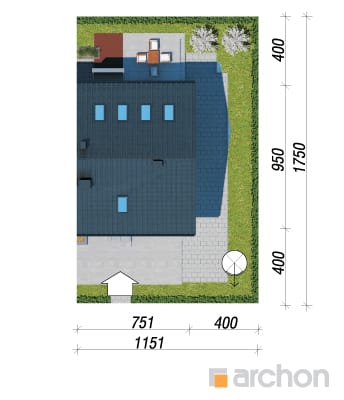

minimal lot dimensions [i] the terraces are not included	11,51x17,50 m
* after changes [i] the specification of suggested changes available on request	11,31x17,10 m
Cubature	572,00 m³
Building area	68,50 m²
Usable area [i] house area without utility rooms, garage, attic and basement	122,90 m²
Building height	9,93 m

TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 14 cm, plaster
strop: reinforced concrete slab
up stand wall: 104 cm
roof: double-pitched , roof angle 30° , roof construction: wooden, ceramic roofing tile

price: 2,070.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl

send order inquiry

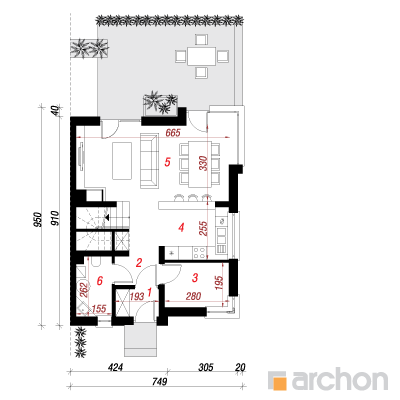

ground floor	48,20
1. porch	2,30
2. hall	5,70
3. utility room	5,50
4. kitchen	7,20
5. living and dining room	23,50
6. toilet	4,00

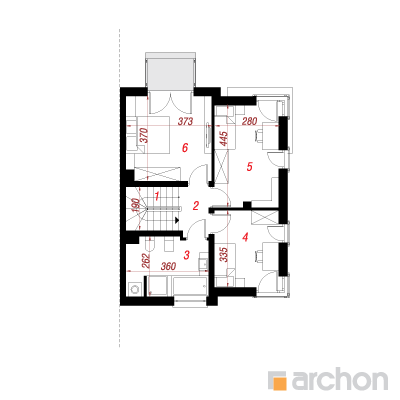

floor	51,50
1. stairs	4,40
2. hall	2,80
3. bathroom	8,90
4. room	9,40
5. room	12,40
6. room	13,60

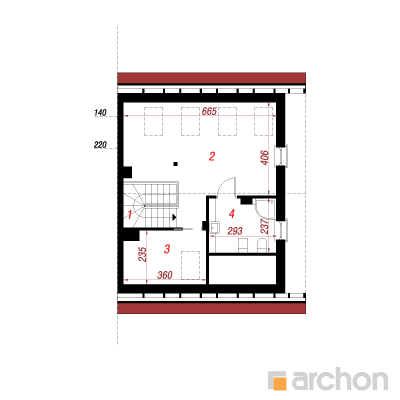

attic	31,70	(46,50)
1. stairs	4,40	(4,40)
2. room	18,40	(27,20)
3. boxroom	3,00	(8,10)
4. bathroom	5,90	(6,80)
