archonplus.com House near alley

ARCHON+ House plan - House near alley

multi-family house

garage, basement,

TECHNICAL SPECIFICATIONS

House area without garage, basement	1 953,40 m²
Basement area	918,50 m²
Cubature	12 041,00 m³
Building area	480,00 m²
Building height	19,58 m

TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 14 cm, plaster
strop: reinforced concrete slab
up stand wall: 70 cm
roof: double-pitched , roof angle 38° , roof construction: wooden, press metal roof tiles

price: 43,100.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl

send order inquiry

basement	918,50	(933,20)
1. staircase	12,20	(18,00)
2. passage	5,50
3. staircase	12,20	(18,00)
4. passage	5,50
5. garage	830,00	(833,10)
6. technical room	25,40
7. technical room	14,10
8. technical room	13,60

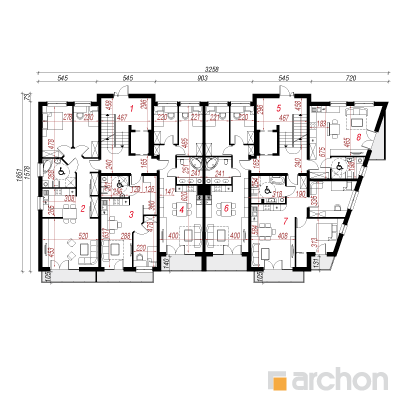

ground floor	385,90
1. staircase	28,20
2. flat	75,00
3. flat	42,80
4. flat	54,70
5. staircase	28,20
6. flat	54,70
7. flat	64,90
8. flat	37,40

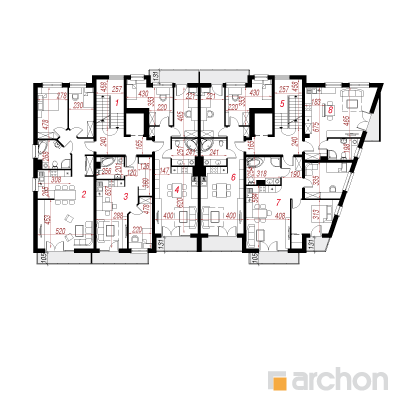

floor	383,30
1. staircase	22,10
2. flat	75,00
3. flat	42,60
4. flat	59,90
5. staircase	22,10
6. flat	59,90
7. flat	64,60
8. flat	37,10

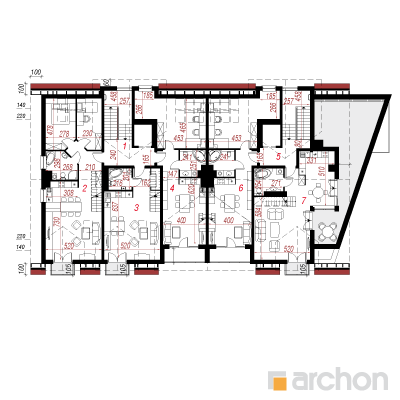

attic	420,60	(490,00)
1. staircase	21,40	(21,40)
2. flat	84,40	(101,30)
3. flat	76,00	(89,70)
4. flat	60,30	(72,20)
5. staircase	19,40	(19,40)
6. flat	60,40	(72,20)
7. flat	98,70	(113,80)
