archonplus.com House in the curry

ARCHON+ House plan - House in the curry

single-family house

garage, 5 rooms, 1 kitchen, 3 bathrooms, dining room, boiler-room, wardrobes, utility room, fireplace,

TECHNICAL SPECIFICATIONS

House area without garage	164,10 m²
Garage area	34,50 m²

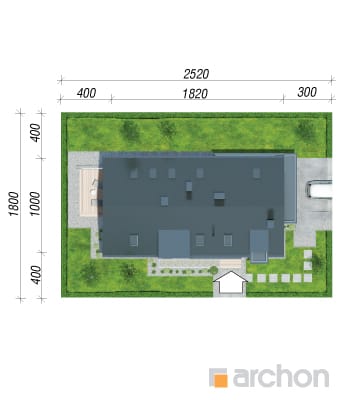

minimal lot dimensions [i] the terraces are not included	18,00x25,20 m
* after changes [i] the specification of suggested changes available on request	17,00x25,20 m
Cubature	865,00 m³
Building area	148,10 m²
Usable area [i] house area without utility rooms, garage, attic and basement	142,70 m²
Building height	7,83 m

TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 14 cm, plaster
strop: reinforced concrete slab
up stand wall: 114 cm
roof: double-pitched , roof angle 40° , roof construction: wooden, metal sheet

price: 2,880.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl

send order inquiry

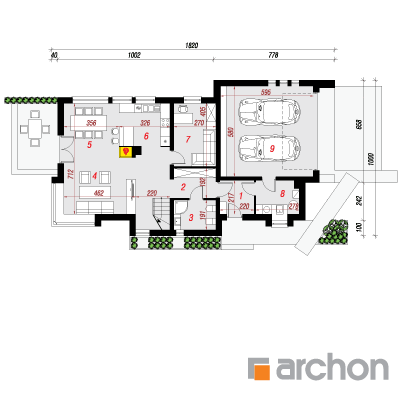

ground floor	114,00	(116,90)
1. porch	4,80
2. hall	5,50
3. bathroom	5,20
4. living room	27,40	(30,30)
5. dining room	9,80
6. kitchen	10,00
7. study	10,90
8. boiler-room	5,90
9. garage	34,50

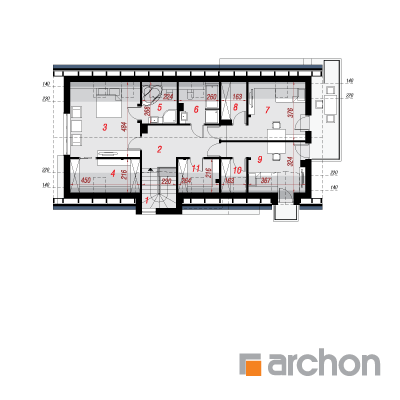

attic	84,60	(103,30)
1. stairs	5,10	(5,10)
2. hall	11,50	(11,50)
3. room	18,20	(21,70)
4. wardrobe	6,20	(9,70)
5. bathroom	4,20	(6,00)
6. bathroom	4,70	(6,70)
7. room	13,20	(15,50)
8. wardrobe	3,20	(4,20)
9. room	12,20	(13,80)
10. wardrobe	2,50	(3,50)
11. utility room	3,60	(5,60)
