ARCHON+ House plan - House by the boulevard 8
252


260
Energooszczednosc Piekny-ogrod Instalacja-odgromowa Rodzina-na-swoim
multi-family house

basement,
TECHNICAL SPECIFICATIONS
House area
without basement		2 036,80 m2
Basement area 515,40 m2
Cubature 9 347,00 m3
Building area 670,10 m2
Building height 14,31 m
TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 14 cm, plaster
strop: reinforced concrete slab
up stand wall: 102 cm
roof: hipped, roof angle 35° , roof construction: wooden, ceramic roofing tile

price: 38,300.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
send order inquiry

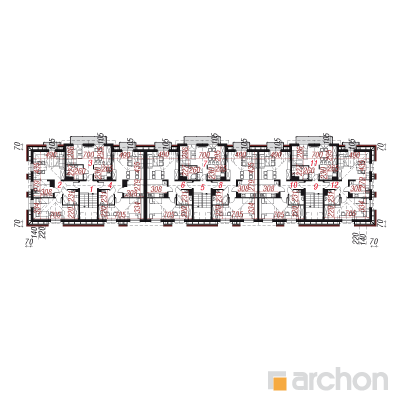

House by the boulevard 8
basement 515,40 (524,70)
1. staircase 15,30 (18,40)
2. passage 26,80
3. storage room 90,90
4. technical room 8,20
5. utility room 18,70
6. laundry 12,40
7. staircase 15,30 (18,40)
8. passage 32,00
9. storage room 104,20
10. laundry 11,80
11. technical room 8,20
12. staircase 15,30 (18,40)
13. passage 32,60
14. storage room 103,70
15. laundry 11,80
16. technical room 8,20

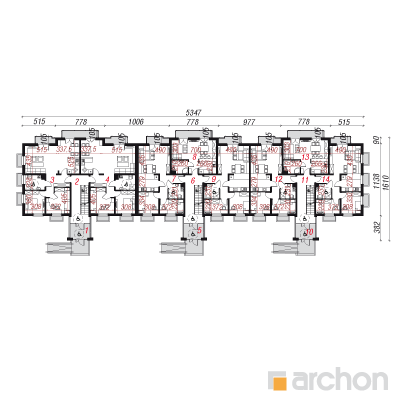

House by the boulevard 8
ground floor 553,90
1. porch 5,90
2. staircase 20,50
3. flat 79,60
4. flat 79,70
5. porch 5,90
6. staircase 20,50
7. flat 61,10
8. flat 35,50
9. flat 61,10
10. porch 5,90
11. staircase 20,50
12. flat 61,10
13. flat 35,50
14. flat 61,10

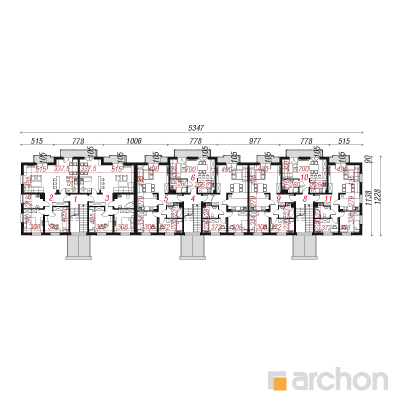

House by the boulevard 8
floor 501,80
1. staircase 9,70
2. flat 79,40
3. flat 79,50
4. staircase 9,70
5. flat 60,80
6. flat 35,30
7. flat 60,80
8. staircase 9,70
9. flat 60,80
10. flat 35,30
11. flat 60,80

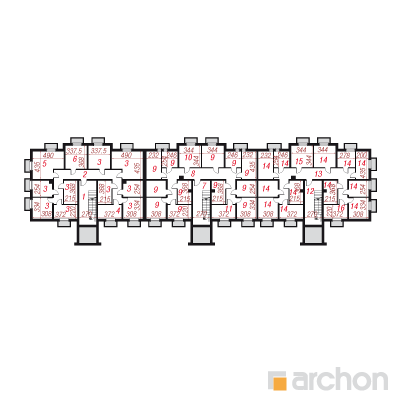

House by the boulevard 8
attic 460,80 (522,70)
1. staircase 16,20 (16,20)
2. flat 45,80 (61,50)
3. flat 33,40 (35,00)
4. flat 55,00 (61,60)
5. staircase 16,20 (16,20)
6. flat 54,90 (61,50)
7. flat 33,40 (35,00)
8. flat 55,10 (61,50)
9. staircase 16,20 (16,20)
10. flat 55,10 (61,50)
11. flat 33,40 (35,00)
12. flat 46,10 (61,50)
256
255
