archonplus.com House by the boulevard 6

ARCHON+ House plan - House by the boulevard 6

multi-family house

garage, basement,

TECHNICAL SPECIFICATIONS

House area without garage, basement	455,90 m²
Basement area	138,70 m²
Cubature	2 277,00 m³
Building area	189,30 m²
Building height	11,01 m

TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 14 cm, plaster
strop: reinforced concrete slab
roof: , roof angle 0°
en, stropodach: en, spadek2 - 12,5%%

price: 9,000.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl

send order inquiry

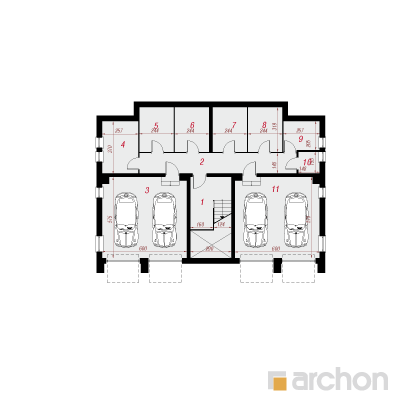

basement	138,70	(147,80)
1. staircase	7,50	(16,60)
2. passage	20,80
3. garage	34,10
4. storage room	4,00
5. storage room	8,60
6. storage room	7,40
7. storage room	7,40
8. storage room	7,40
9. storage room	5,20
10. technical room	2,20
11. garage	34,10

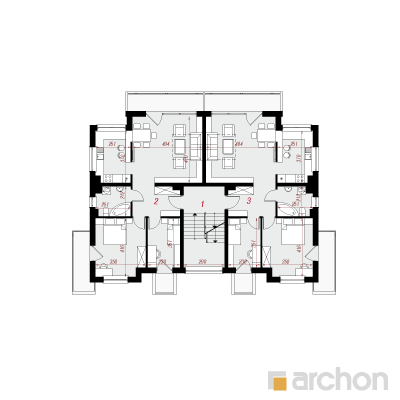

ground floor	150,90
1. staircase	16,70
2. flat	67,10
3. flat	67,10

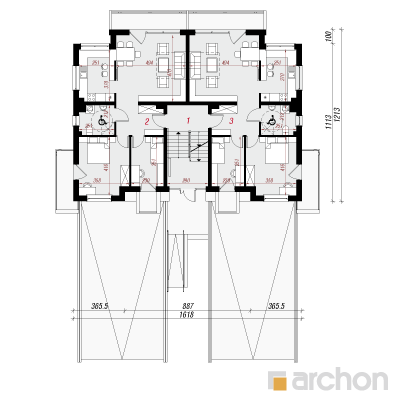

floor	150,70
1. staircase	16,70
2. flat	67,00
3. flat	67,00

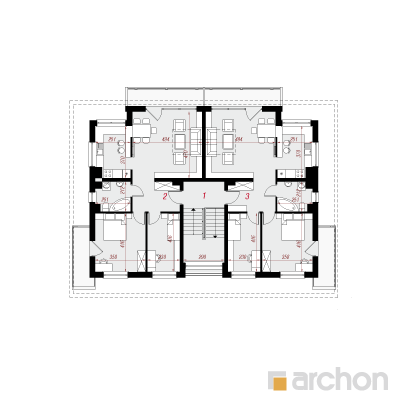

floor	154,30
1. staircase	16,70
2. flat	68,80
3. flat	68,80
