archonplus.com House under the sago palms (B)

ARCHON+ House plan - House under the sago palms (B)

garage, basement, 8 rooms, 2 kitchens, 3 bathrooms,

TECHNICAL SPECIFICATIONS

House area without garage, basement	194,90 m²
Basement area	69,20 m²

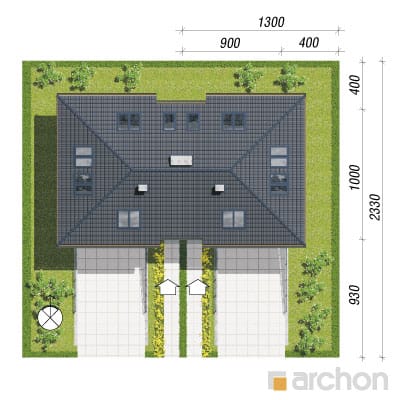

minimal lot dimensions [i] the terraces are not included	8,86x23,30 m
* after changes [i] the specification of suggested changes available on request	8,86x18,00 m
Cubature	1 016,00 m³
Building area	88,40 m²
Usable area [i] house area without utility rooms, garage, attic and basement	194,90 m²
Building height	10,28 m

TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 30 cm, foamed polystyrene 10 cm, plaster
strop: reinforced concrete slab
up stand wall: 105 cm
roof: double-pitched , roof angle 27° , roof construction: wooden, ceramic roofing tile

price: 3,730.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl

send order inquiry

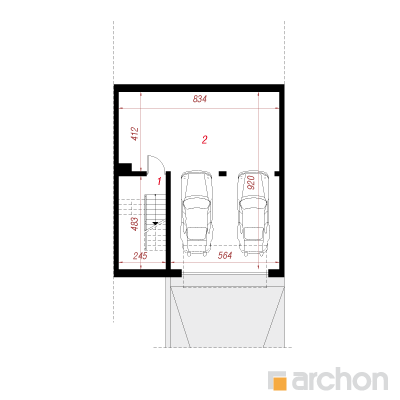

basement	69,20	(74,60)
1. staircase	6,40	(11,80)
2. garage	62,80	(62,80)

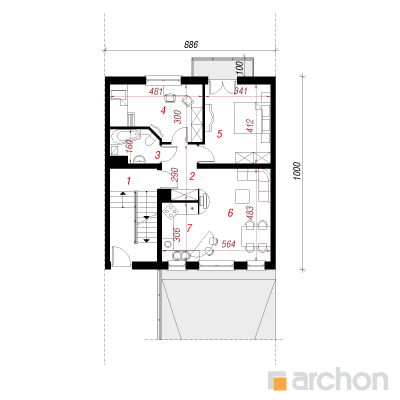

ground floor	71,60
1. staircase	11,80
2. hall	5,00
3. bathroom	4,10
4. room	12,50
5. room	14,30
6. living room	18,00
7. kitchen	5,90

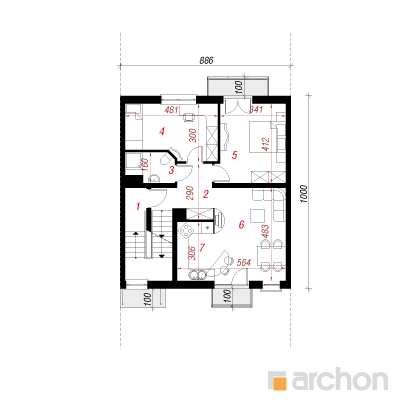

floor	71,00
1. staircase	9,60
2. hall	6,60
3. bathroom	3,70
4. room	12,90
5. room	14,30
6. living room	18,00
7. kitchen	5,90

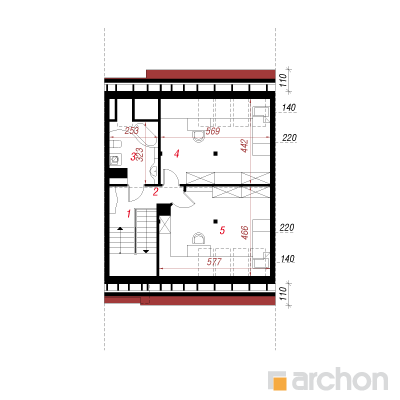

attic	52,30	(71,50)
1. stairs	7,20	(7,20)
2. hall	5,20	(5,20)
3. bathroom	6,50	(8,60)
4. room	16,60	(25,10)
5. room	16,80	(25,40)
