archonplus.com House by the boulevard 4

ARCHON+ House plan - House by the boulevard 4

multi-family house

garage,

TECHNICAL SPECIFICATIONS

House area without garage	1 493,50 m²
Garage area	174,00 m²
Cubature	6 610,00 m³
Building area	468,10 m²
Building height	17,35 m

TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block MAX 29 cm, foamed polystyrene 11 cm, plaster
strop: reinforced concrete slab
up stand wall: 86 cm
roof: double-pitched , roof angle 37° , roof construction: wooden on reinforced concrete structure, press metal roof tiles

price: 25,000.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl

send order inquiry

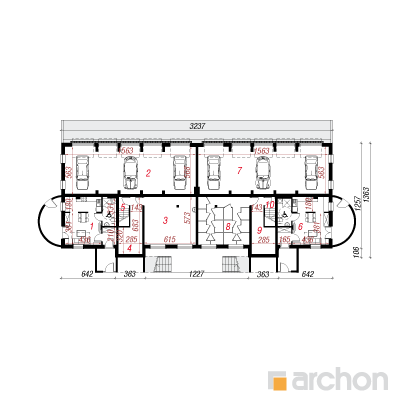

ground floor	336,60	(346,80)
1. flat	33,40
2. garage	87,00
3. technical room	35,20
4. mobility area	9,20	(14,30)
5. stairs	4,40
6. flat	33,40
7. garage	87,00
8. technical room	32,30
9. mobility area	9,20	(14,30)
10. stairs	4,60

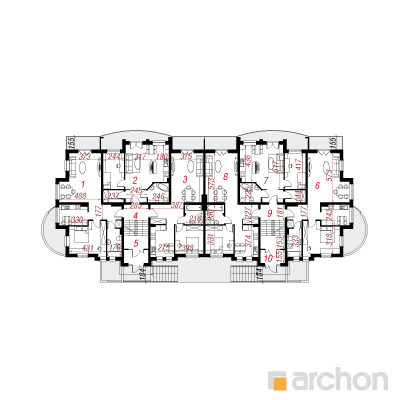

floor	366,00
1. flat	61,00
2. flat	46,90
3. flat	56,00
4. staircase	14,70
5. porch	4,40
6. flat	61,00
7. flat	46,90
8. flat	56,00
9. staircase	14,70
10. porch	4,40

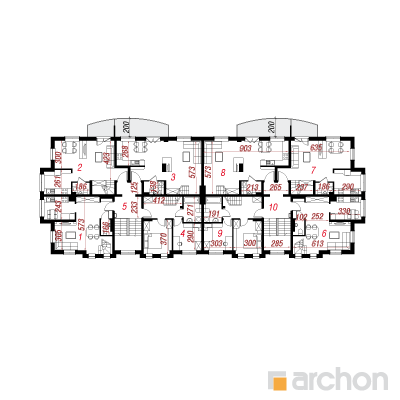

floor	326,80	(348,80)
1. flat level 1	33,70	(36,60)
2. flat level 1	36,90	(39,90)
3. flat level 1	41,00	(43,30)
4. flat level 1	31,80	(34,60)
5. staircase	20,00	(20,00)
6. flat level 1	33,70	(36,60)
7. flat level 1	36,90	(39,90)
8. flat level 1	41,00	(43,30)
9. flat level 1	31,80	(34,60)
10. staircase	20,00	(20,00)

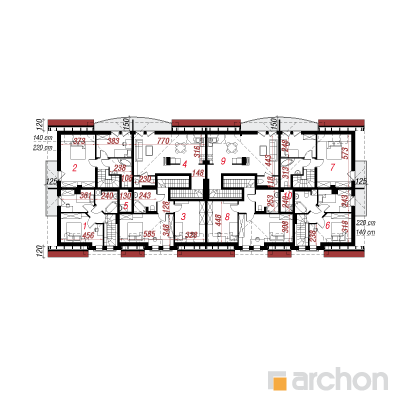

attic	278,30	(328,90)
1. flat level 2	27,90	(33,10)
2. flat level 2	36,00	(41,20)
3. flat level 2	37,30	(47,00)
4. flat level 2	35,00	(40,20)
5. technical room	3,00	(3,00)
6. flat level 2	27,90	(33,10)
7. flat level 2	36,00	(41,20)
8. flat level 2	37,20	(46,90)
9. flat level 2	35,00	(40,20)
10. technical room	3,00	(3,00)
