archonplus.com House by the boulevard 2

ARCHON+ House plan - House by the boulevard 2

multi-family house

basement,

TECHNICAL SPECIFICATIONS

House area without basement	666,10 m²
Basement area	171,50 m²
Cubature	3 087,00 m³
Building area	226,30 m²
Building height	14,23 m

TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 14 cm, plaster
strop: reinforced concrete slab
up stand wall: 102 cm
roof: hipped, roof angle 35° , roof construction: wooden on reinforced concrete structure, ceramic roofing tile

price: 12,600.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl

send order inquiry

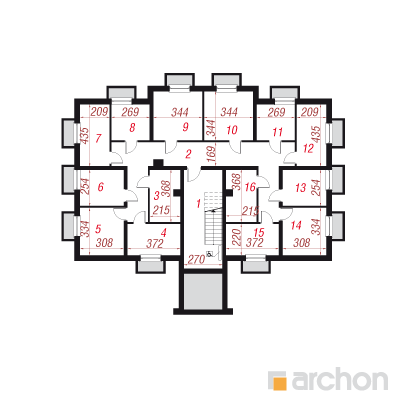

basement	171,50	(174,60)
1. staircase	15,30	(18,40)
2. passage	32,80
3. storage room	7,70
4. storage room	8,20
5. storage room	10,30
6. storage room	7,80
7. storage room	9,10
8. storage room	6,80
9. laundry	11,80
10. storage room	11,80
11. storage room	6,80
12. storage room	9,10
13. storage room	7,80
14. storage room	10,30
15. utility room	8,20
16. storage room	7,70
17. passage	5,30

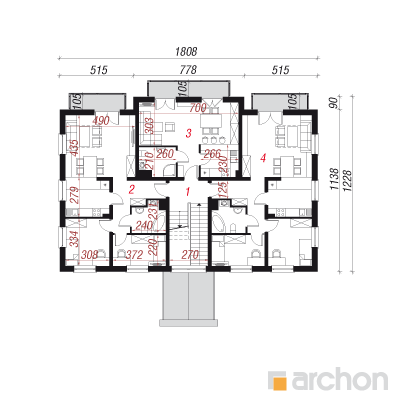

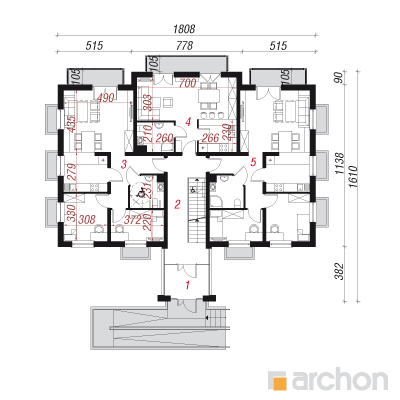

ground floor	184,10
1. porch	5,90
2. staircase	20,50
3. flat	61,10
4. flat	35,50
5. flat	61,10

floor	166,60
1. staircase	9,70
2. flat	60,80
3. flat	35,30
4. flat	60,80

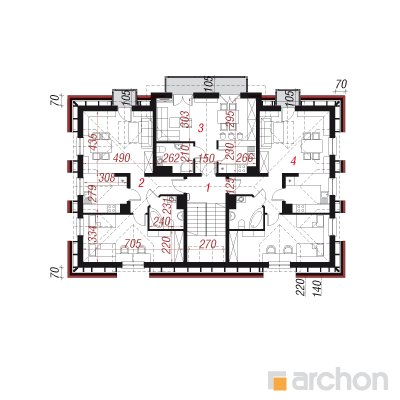

attic	142,60	(174,20)
1. staircase	16,20	(16,20)
2. flat	46,50	(61,50)
3. flat	33,40	(35,00)
4. flat	46,50	(61,50)
