ARCHON+ House plan - House by the boulevard
252


260
Energooszczednosc Piekny-ogrod Instalacja-odgromowa
multi-family house

garage, basement,
TECHNICAL SPECIFICATIONS
House area296,70 m2
Cubature 1 815,54 m3
Building area 189,10 m2
Usable area [i] 257,90 m2
Building height 10,86 m
TECHNOLOGY AND CONSTRUCTION:
exterior walls: ceramic hollow block Porotherm 25 cm, foamed polystyrene 14 cm, plaster
strop: reinforced concrete slab
up stand wall: 129 cm
roof: hipped, roof angle 40° , roof construction: wooden on reinforced concrete structure, ceramic roofing tile

price: 9,200.00 zł
Price refers to the project in the Polish language version. In case of foreign orders the cost of shipment will be added. All projects are available in English. For more information contact us – export@archon.pl
see this house plan on archon.pl >>
House by the boulevard

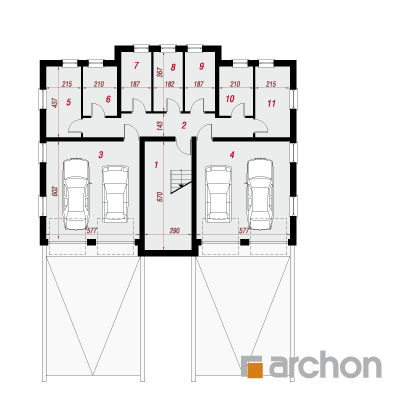

basement 142,10 (154,90)
1. staircase 6,60 (19,40)
2. passage 14,00
3. garage 34,70
4. garage 34,70
5. technical room 9,40
6. storage room 6,40
7. storage room 6,90
8. storage room 6,70
9. storage room 6,90
10. storage room 6,40
11. storage room 9,40
House by the boulevard

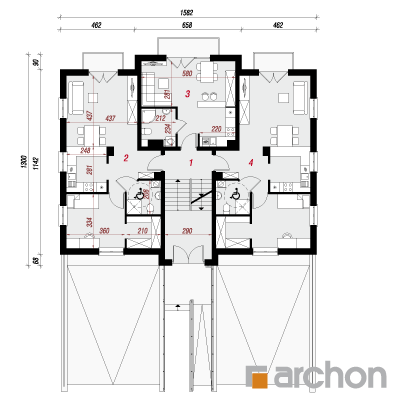

ground floor 155,20
1. staircase 19,40
2. flat 53,30
3. flat 29,20
4. flat 53,30
5. flat 52,80
House by the boulevard

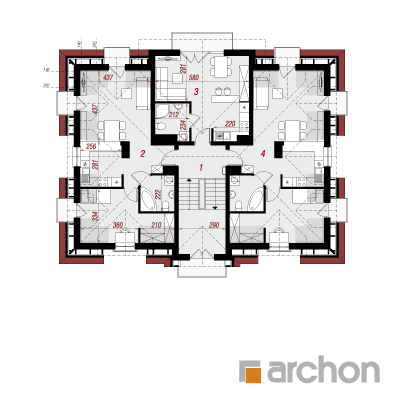

attic 141,50 (154,30)
1. staircase 19,40 (19,40)
2. flat 46,50 (52,90)
3. flat 29,10 (29,10)
4. flat 46,50 (52,90)
